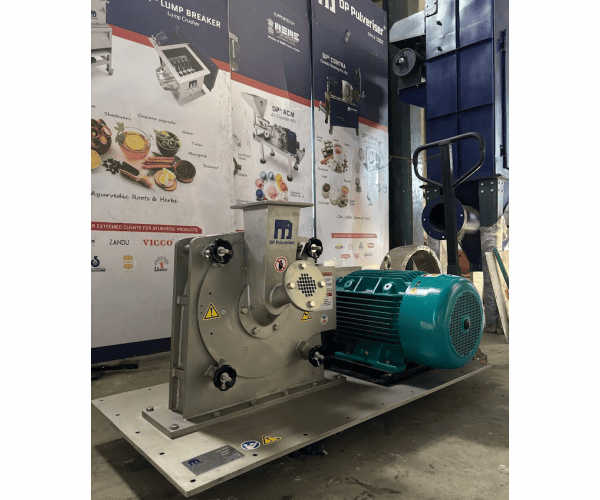

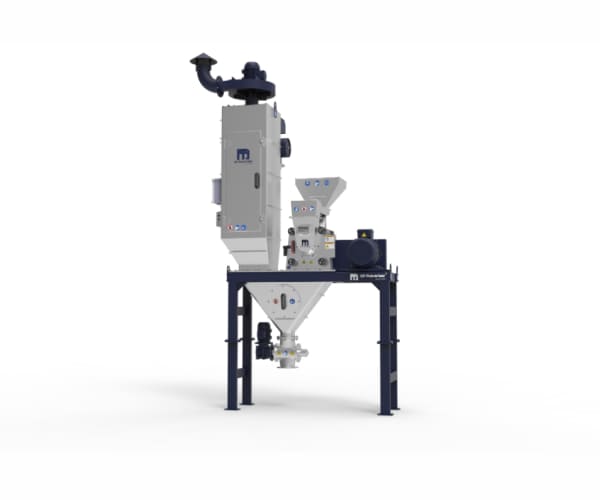

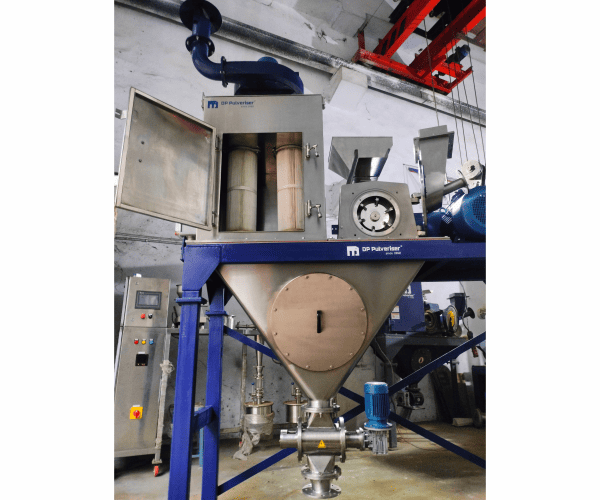

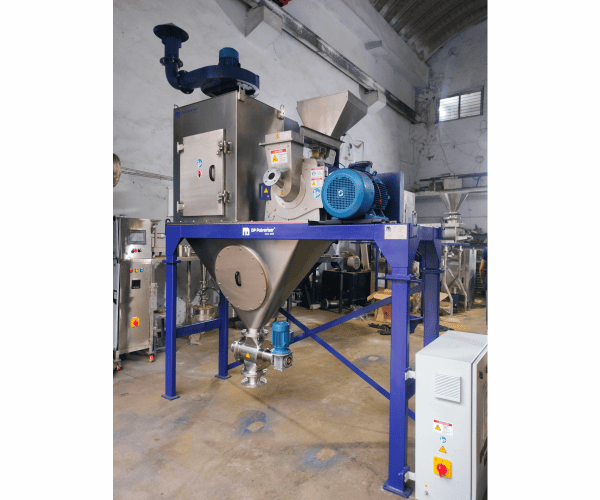

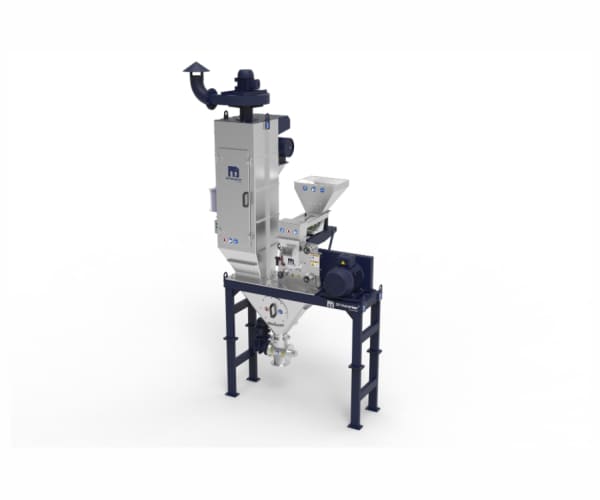

DP® UNIVA Plate Beater Mill
The DP® Plate Beater Mill is a high-speed impact mill with durable beater plates designed for efficient size reduction. It handles coarse to medium feed materials, producing controlled particle sizes while maintaining cool operation for heat-sensitive products. Ideal for food, chemical, and mineral applications.
Working Principle

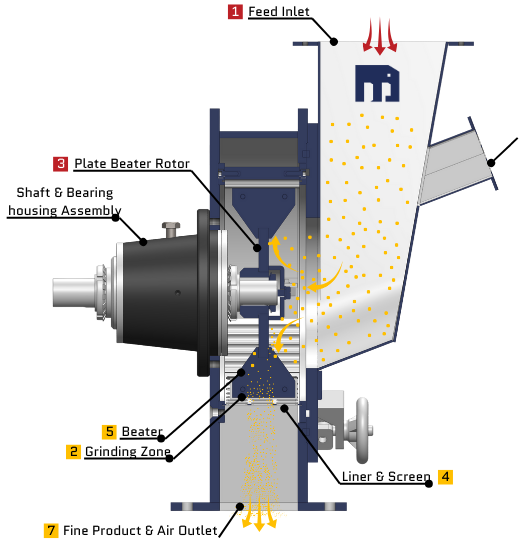

The DP® UNIVA Series Plate Beater Mill operates on the principle of high-speed impact and shearing between rotating beaters and a fixed liner. Material enters through the feed inlet (1) and is directed into the grinding zone (2) by gravity or controlled feeding systems such as a screw or vibratory feeder. Air can be introduced via the air inlet (6) to support material transport, cooling, and fluidization during milling.

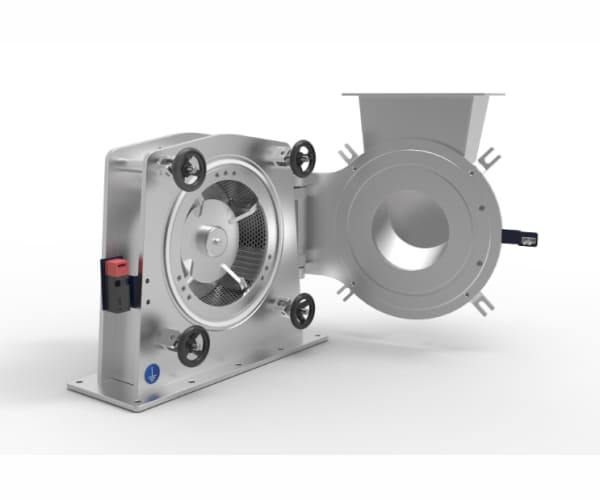

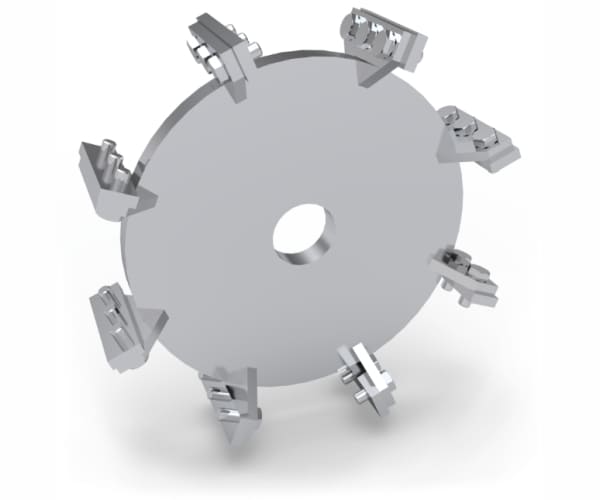

Inside the grinding chamber, the plate beater rotor (3) is equipped with multiple beaters (5) that strike and propel the material against the liner and screen (4). The material is initially fractured on impact, then further reduced through repeated collisions and compression between the beaters and liner. The screen ensures that only particles of the desired size pass through.
This system is well-suited for coarse to medium feed materials, including fibrous, and crystalline products. The final product, along with process air, exits via the fine product & air outlet (7) for gravity discharge collection or pneumatic conveying. Particle size can be controlled by selecting the appropriate screen opening, rotor speed, and feed rate to meet application requirements.
Features & Benefits
- Suitable for grinding material with fiber content
- Wide flexibility in feed materials – suitable for dry, slightly moist, and low-oil products.
- Capable of processing materials up to approx. Mohs hardness 3.
- Variable speed rotor drive for precise control of fineness and throughput.
- Operates efficiently with low energy consumption and reduced operating costs.
- Delivers uninterrupted grinding with a screen-free design, ensuring consistent output and minimal downtime.

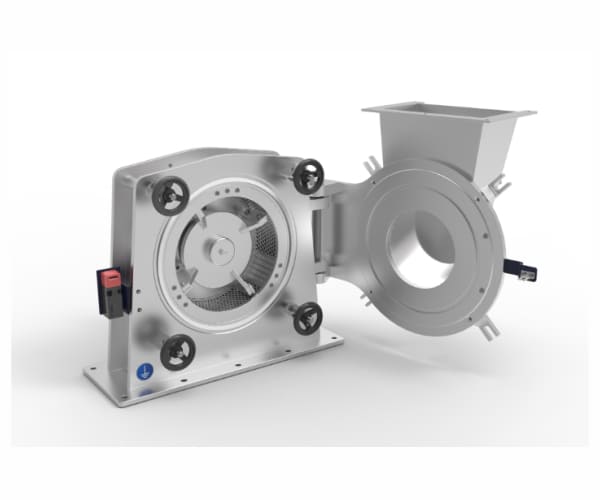

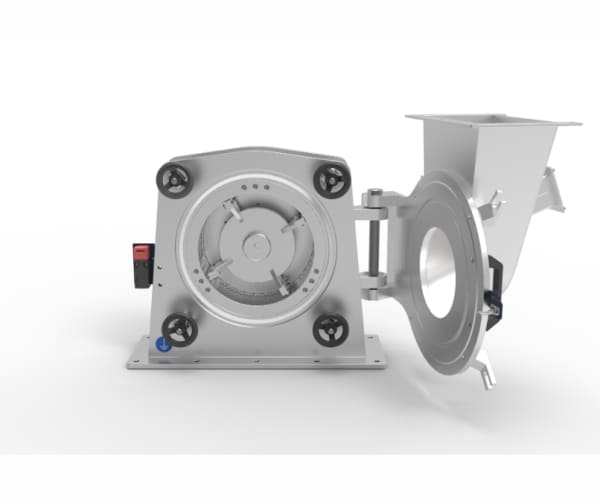

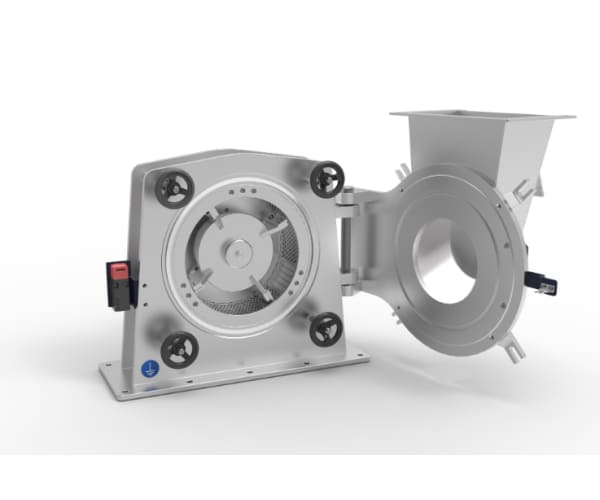

- Grinding chamber and components designed for easy access and quick cleaning.

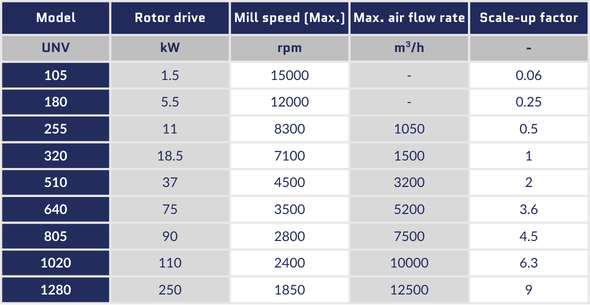

Machine sizes
Options & Accessories
- Explosion Protection: Can be engineered with pressure shock-resistant housing to comply with dust explosion safety standards, supporting overpressure resistance up to 10 bar.
- Metal Separation: Can be fitted with inline magnetic separators or metal detectors to maintain product purity and protect equipment.

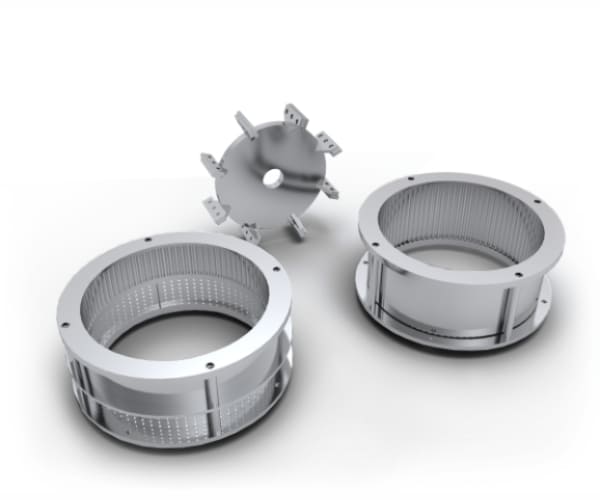

- Screen Variants: Available with multiple screen sizes and designs to achieve accurate particle size distribution across diverse applications.

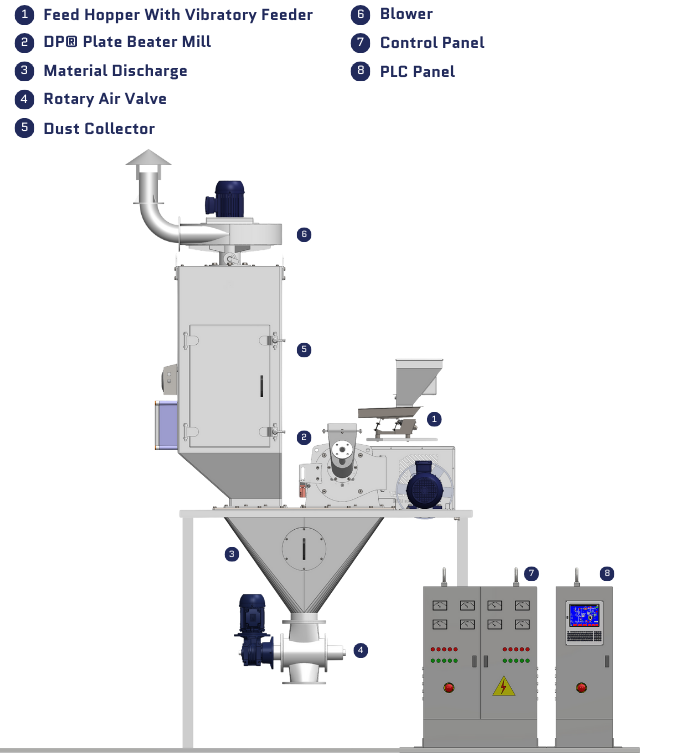

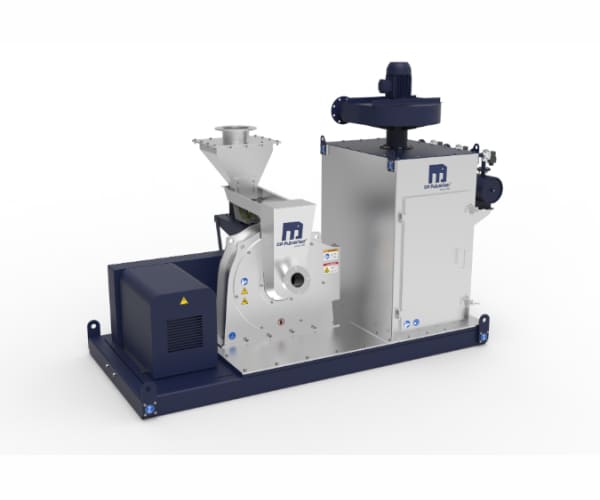

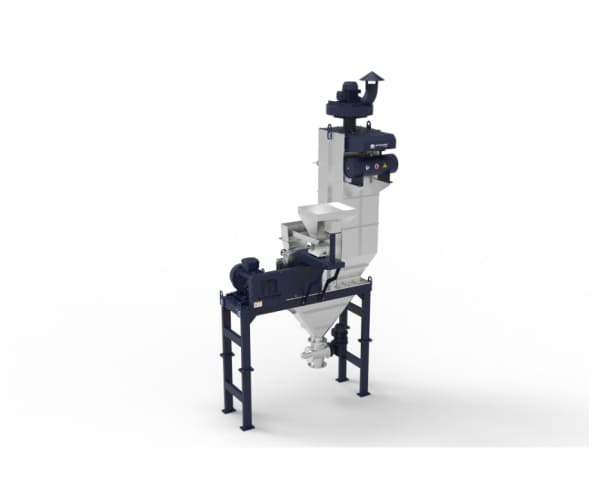

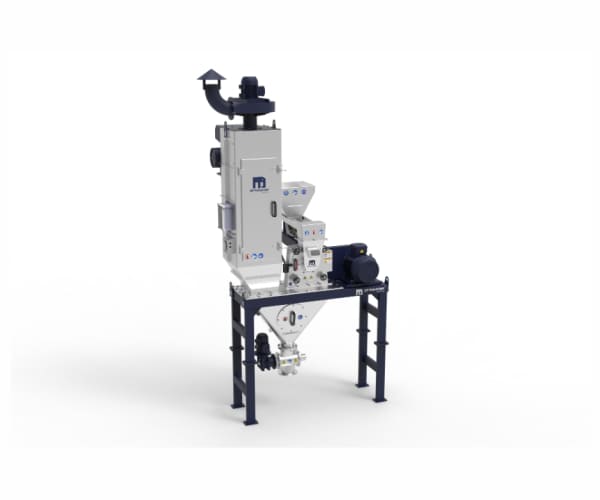

- Feeding & Discharge Systems: Compatible with screw feeders, vibratory feeders, gravity feed hoppers, pneumatic conveying and gravity discharge systems.

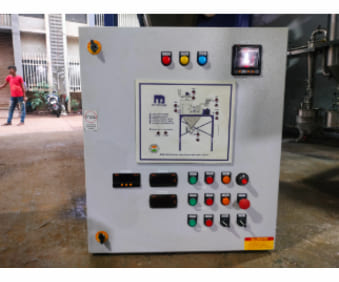

- Instrumentation & Monitoring: Can be equipped with temperature probes, vibration sensors, and safety interlocks for process control and equipment protection.
- Variable Speed Drive: Optional frequency-controlled drive system for precise adjustment of rotor speed and particle size.
